Ultrasound Portable Unit PM 2000 + Tens Pain Management Electrotherapy Package
Ultrasound Portable Unit PM 2000 + Tens Pain Management Electrotherapy Package
Therapy Products and More Relief is Just a Click Away!
Over the Counter~No Prescription Needed
Portable unit that rovides ultrasound therapy for pain treatment
Portable Ultrasound Unit - Model: PM2000
The Portable Ultrasound PM2000 Unit is a lightweight, handheld unit that helps to provide deep ultrasound therapy. The ultrasound therapy sound waves are generated through the piezoelectric crystal soundhead. These sound waves cause vibrations of soft tissue cells, which help to increase vasodilation. The PM2000 Ultrasound Unit can help to relieve pain, reduce inflammation and muscle spasms and increase range of motion to help speed up the healing process. The Portable PM2000 Ultrasound Unit comes with a carrying case and AC adapter for use at home or at work.
Features:
- 3 Output Intensities
- Auto-Timer Settings
- Lightweight, Handheld Design
- Technical Specifications:
- Power: Switch adapter
- Input: AC 100-240V, 50/60 Hz
- Output: DC 24V
- Frequency: 1MHz ± 10%
- Type: Non focusing
- Pulse Width: 2ms ± 10%
- Repetition Rate: 150 Hz ± 10%
- Waveform: Pulsed
- Temporal Max. Power: 4W ± 10%
- Temporal Max. Eff. Intensity: 1.57W/cm2 ± 10%
- Eff. Avg. Eff. Intensity: 0.47W/cm2 ± 10%
- Temporal Peak Avg. Intensity Ratio: 3.34 ± 10%
- ERA (Eff. Radiating Area): 6.16 cm2 ± 5%
- BNR (Beam Non-Uniformity Ratio): Max. 5.6:1
- Auto-Time Setting: 30 min ± 10%
- Output Intensity: Low, Medium, High
- Size (LWH): 6.77" x 2.13" x 1.65" in (172x54x42mm)
- Weight of Main Unit: 0.26 lbs (120g)

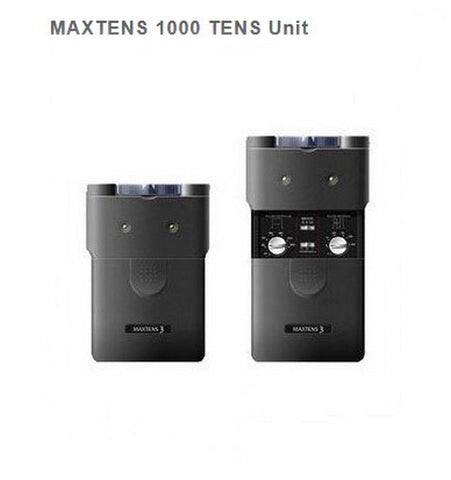

Maxtens 1K
Over the Counter No Prescription Needed
User-driven units feature a wide array of output combinations to help ensure proper settings.
Features three modes: B (Burst), N (Normal) and M (Modulation).
The pulse rate, pulse width and amplitude are adjustable to lessen acute pains due to an accident or chronic conditions, such as arthritis or other joint and muscle conditions.
Sturdy construction with an attractive appearance.
Protective cover to guard against accidental setting changes.
Zero Start feature for shock prevention- if the output is not set to "0" while the battery is being connected, unit will not operate.
Amplitude is adjustable, 0- 80mA peak into 500-ohm load each channel.
Waveform is asymmetrical biphasic pulse. Analog. Pulse rate is adjustable, 2 Hz ~ 150 Hz.
Pulse width is adjustable, 30 microseconds ~ 260 microseconds. Timer range from 15 or 30 minutes to continuous mode.
Features:
- Fully adjustable.
- Convenience
- Sturdy construction with an attractive appearance.
- Protective cover to guard against accidental setting changes.
- Zero Start Feature (Shock Prevention).
- Specifications
- Channel: Dual
- Amplitude: Adjustable, 0-80mA peak into 500 ohm load each channel
- Pulse Rate: Adjustable, 2 ~ 150 Hz
- Pulse Width: Adjustable, 30 ~ 260 microseconds
- Mode
- B : Burst mode
- N : Normal(constant) mode
- M : Modulation mode
- Wave Form: Asymmetrical biphasic pulse
- Timer: 15, 30, continue
- Power Supply: 9V Battery
- Size: 105(H) x 70(W) x 24(T) mm
- Weight: 127g (battery included)

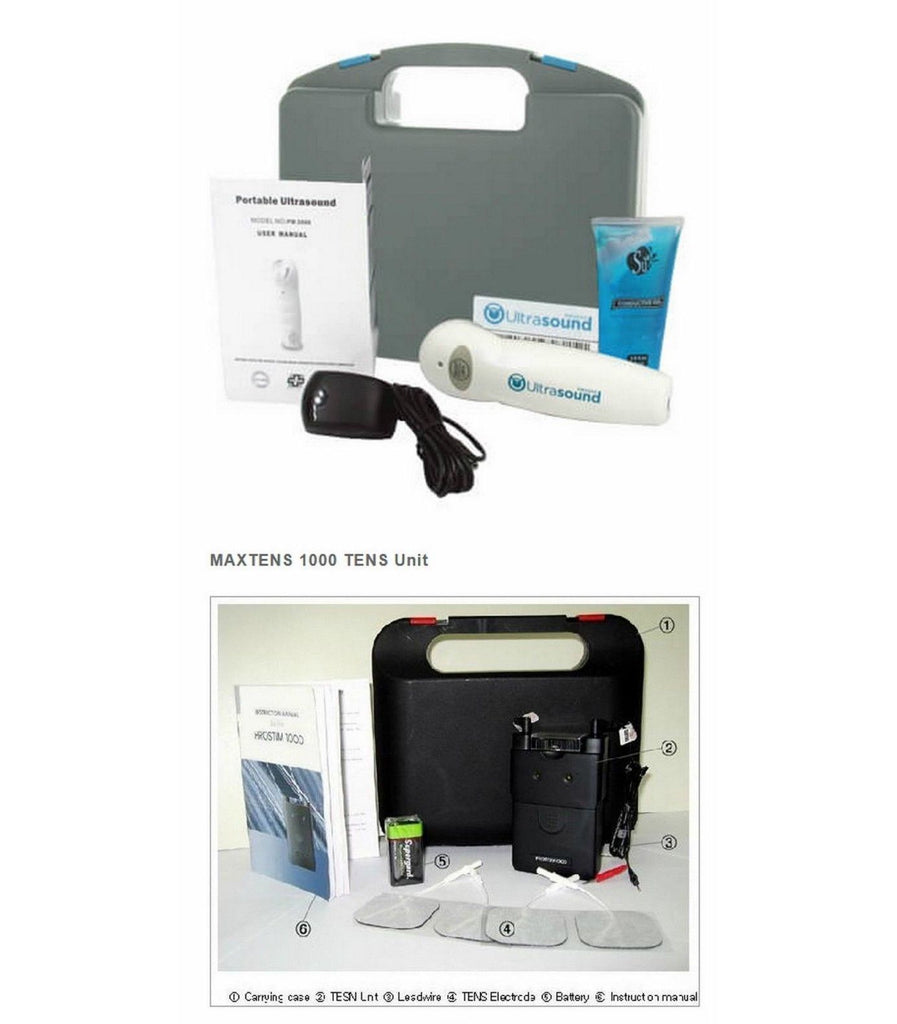

Total Package Includes:
- PM2000 Ultrasound
- Instruction Manual
- Ultrasound Gel
- AC Adapter
- Carrying Case
- TENS Unit
- Four (4) TENS Electrode
- Two (2) Leadwires
- 9V Battery, type 6F22
- Instruction Manual
- Carrying Case
Warnings:
Read Instruction Manual before using.
Returns: Due to Covid 19 and for sanitary reasons, we cannot accept returns on used products.
Shipping to the 48 states only
