+BONUS! CARETEC IV 4 in 1 COMB IFC EMS RUSSIAN STIM TENS MASSAGER
Description of the Caretec IV:
FDA Approved
• 4 Electrotherapies in One Device: TENS, EMS, Interferential and Russian Stim.
• Clinic Tested for Optimal Programming
• Patients Love the Sleek Design
• Easy to Program and Operate
• Digital and Dual Channel
• BONUS AC Adapter! +16 BONUS ADHESIVE ELECTRODE PADS!(a $25 Value)+ Free Expedited US Shipping! 30 Day Money Back Guarantee .
These are nice fabric good quality electrode pads that are durable
and flexible and are excellent for applying around joints such as
wrists or elbows. These pads can be used for areas of the body that
are flat, like back or thighs. They are great quality and come with
a thick layer of non-irritating conductive gel that adheres well to your skin, but leaves no sticky residue when the electrodes are removed.
The Measurements are: 5 cm by 5 cm or about 2" by 2". Pin diameter is 2 mm.

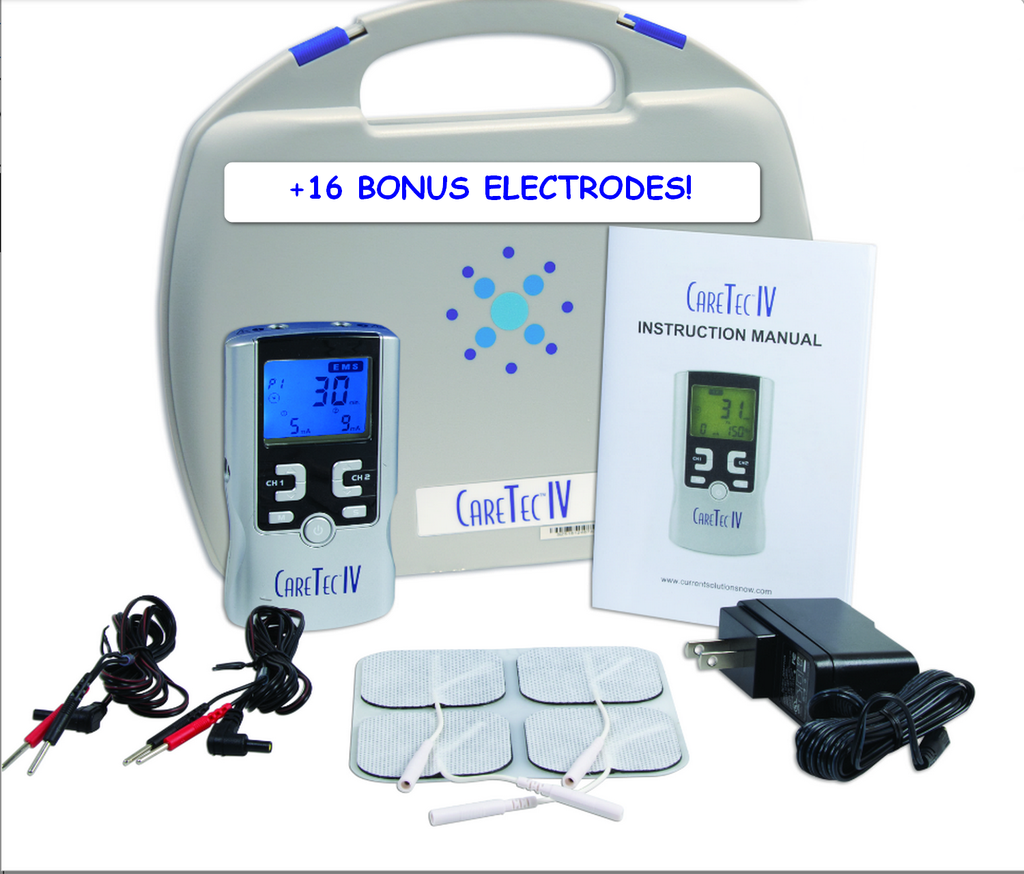

Each set (2 pads) is packaged in a resealable storage bag. CareTec IV units come with a user manual, 4 electrodes, leadwires, carrying case, 9V battery, Bonus AC Adapter
General Technical information
- Channel: Dual, isolated between channels
- Power supply: 9.0 V DC -1 *6LR61 battery
- Adapter output: 9.0Vdc, 800mA
- Dimensions: 4.5×2.55×0.9 inches(L*W*H)
- Weight: 0.28 lbs (with battery)
- Timer: Adjustable, from 1 to 60 minutes or continuous, Adjustable (1 minute each step)
- Treatment time countdown automatically.
Technical Specifications for TENS mode
- Waveform: Mono-phase square pulse wave
- Pulse Amplitude: Adjustable, 0~100mA peak at 1000 ohm Load each channel, 1mA/Step.
- Pulse Width: Adjustable, from 50 to 300us microseconds, 10μS/step
- Pulse Rate: Adjustable, from 1 to 150 Hz, 1 Hz/step
- Burst Rate adjustable, 0.5 ~ 5Hz; 0.1Hz/step
Technical specifications for EMS mode
- Waveform: Mono-phase square pulse wave
- Pulse Amplitude: Adjustable, 0~100mA peak at 1000 ohm Load each channel, 1mA/Step
- Pulse Width: Adjustable, from 50 to 300μS microseconds, 10μSec/Step.
- Pulse Rate: Adjustable, from 1 to 150 Hz, 1 Hz/Step
- Contraction Time: Adjustable, 1~30 seconds , 1 Sec./ Step
- Relaxation (OFF) time: Adjustable, 0~60 seconds , 1 Sec./ Step
- Ramp time: Adjustable, 1~6 seconds, 1 Sec. / Step
Technical specifications for Interferential (IF) mode
- Waveform: Bi-phase square pulse
- Pulse Amplitude: Adjustable, 0~70mA peak to peak at 1000 ohm Load each channel, 1mA/Step.
- Pulse Rate: Channel 1 – Fundamental frequency: 4000 Hz fixed
- Channel 2 – Selectable frequency: 4001 to 4150 Hz
- Interference Frequency: 1 to 150 Hz.
- Phase Width: 125μS
Technical specifications for Russian Stim mode
- Waveform: Symmetrical Biphasic Square
- Carrier Frequency: 2500 Hz Fixed
- Difference Frequency: 1-70 Hz adjustable
- Amplitude / Intensity Adjustment: 1 - 8
- Pulse Width: 200 microseconds, adjustable
- Ramp Time: 2 seconds
- Contraction & Relaxation Time: Continuous or Adjustable (10 to 45 Seconds)
- Power Output: 38 Volts (peak to peak) in bipolar mode, otherwise 28 volts in quadpole
